To construct a drafting table from wood, gather materials and tools. Choose sturdy wood like oak, maple, or birch. Cut wood to size for tabletop, legs, and support beams. Sand edges for a smooth finish. Attach legs and beams with screws or nails.
Ensure table is level. Create a tilting mechanism by adding hinges or brackets. Test mechanism for functionality. Apply wood stain or paint for protection and aesthetics. Your homemade drafting table is now complete, offering a stable workspace for drafting and drawing.
Ready to Start Your Custom Woodworking Project?
What materials are needed to build a wooden drafting table?
To build a wooden drafting table, you will need a variety of materials to ensure a sturdy and functional finished product. The primary material required is, of course, wood. Opt for a high-quality hardwood such as oak, maple, or cherry for durability and stability.
Additionally, you will need screws, nails, or wood glue to assemble the table securely. A measuring tape, pencil, and level are essential tools for accurate measurements and straight lines. A saw will be necessary to cut the wood to the desired dimensions, while a drill will be needed to create holes for screws or nails.
Sandpaper is crucial for smoothing out rough edges and surfaces for a professional finish. Lastly, a clear wood finish or paint can be used to protect the wood and enhance its appearance.
By gathering these materials and following a detailed plan or blueprint, you can successfully build a wooden drafting table that meets your needs and specifications.

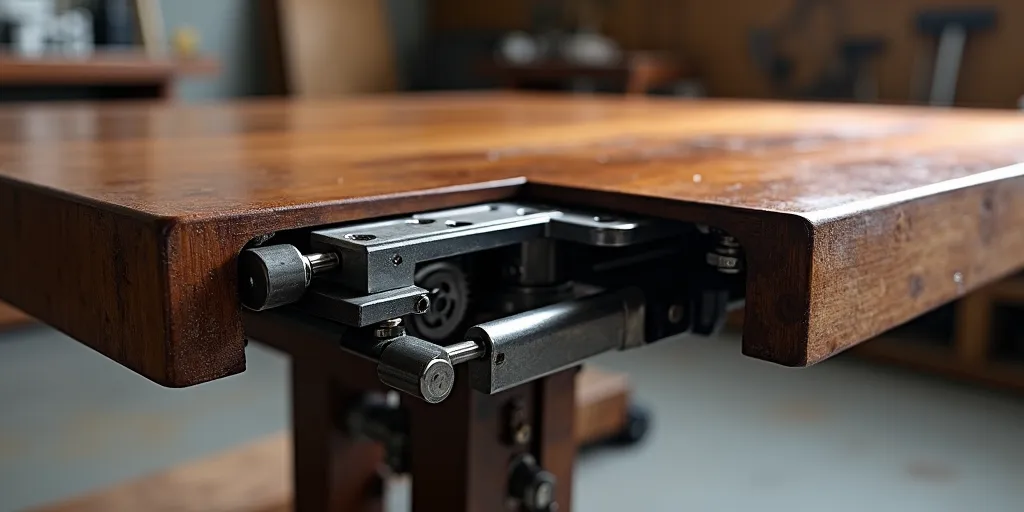

How do you create a tilting mechanism for the tabletop?
To create a tilting mechanism for a tabletop, you will need to consider a few key components. First, you will need to choose a suitable hinge that can support the weight of the tabletop while allowing it to tilt smoothly. A heavy-duty piano hinge or a ball-bearing hinge may be good options for this purpose.
Next, you will need to attach the hinge securely to the underside of the tabletop and the supporting structure, ensuring that it is aligned properly to allow for smooth tilting motion. Additionally, you may want to consider adding a locking mechanism to hold the tabletop in place at different angles.
This can be achieved using a simple latch or a more complex locking system, depending on your specific needs. Finally, you may also want to incorporate a counterbalance mechanism to make it easier to tilt the tabletop up and down.
This can be achieved using springs or weights that help to offset the weight of the tabletop, making it easier to adjust the tilt angle. By carefully selecting the right components and ensuring proper installation, you can create a functional and reliable tilting mechanism for your tabletop.
What steps are involved in assembling a homemade drafting table?
Assembling a homemade drafting table involves several key steps to ensure a successful and functional end result. First, gather all necessary materials and tools, including wood boards, screws, a drill, measuring tape, and a saw. Next, measure and cut the wood boards to the desired dimensions for the tabletop, legs, and support beams.
Use the drill to attach the legs to the tabletop, making sure they are securely fastened. Then, add the support beams underneath the tabletop for added stability. Once the basic structure is assembled, sand down any rough edges and apply a coat of finish or paint to protect the wood and give the table a polished look.
Finally, add any additional features such as a pencil tray, adjustable height mechanism, or storage shelves to customize the drafting table to your specific needs.
By following these steps carefully and paying attention to detail, you can create a homemade drafting table that is both functional and aesthetically pleasing for all your drafting and design projects.
How can you ensure the stability of a wooden drafting table?
To ensure the stability of a wooden drafting table, there are several key steps that can be taken. Firstly, it is important to choose a high-quality, sturdy wood for the construction of the table. Hardwoods such as oak, maple, or cherry are ideal choices as they are less prone to warping or bending over time.
Additionally, ensuring that the wood is properly dried and seasoned before construction can help prevent any future issues with stability.
Another important factor in maintaining the stability of a wooden drafting table is to regularly check and tighten any screws or bolts that may have come loose.
This will help prevent any wobbling or shifting of the table during use. Additionally, placing the table on a level surface and using adjustable feet or leveling pads can help ensure that the table remains stable and balanced.
Lastly, avoiding exposure to extreme temperatures, humidity, or direct sunlight can help prevent the wood from expanding or contracting, which can lead to instability. By following these steps and properly maintaining your wooden drafting table, you can ensure that it remains stable and reliable for years to come.
